The new RV-MAX 360S.
Thinner.
Sharper.
Ruggedized.
Everything operators trust about the RV-MAX 360 — now with sub-quarter-inch 3D models anda real-time depth finder, sealed to IP68 and tested 6 ft underwater for one hour.
360° • 4K
8.1 mp capture
< 6 mm
3D precision
6,600 lm
6 light modes
IP68
6 ft / 1 hour
what's new vs rv-max 360
Three upgrades that change the survey
The 360S keeps the full RV-MAX 360 workflow and adds measurement-grade precision, livedepth, and true submersion. Everything else operators already know stays the same.

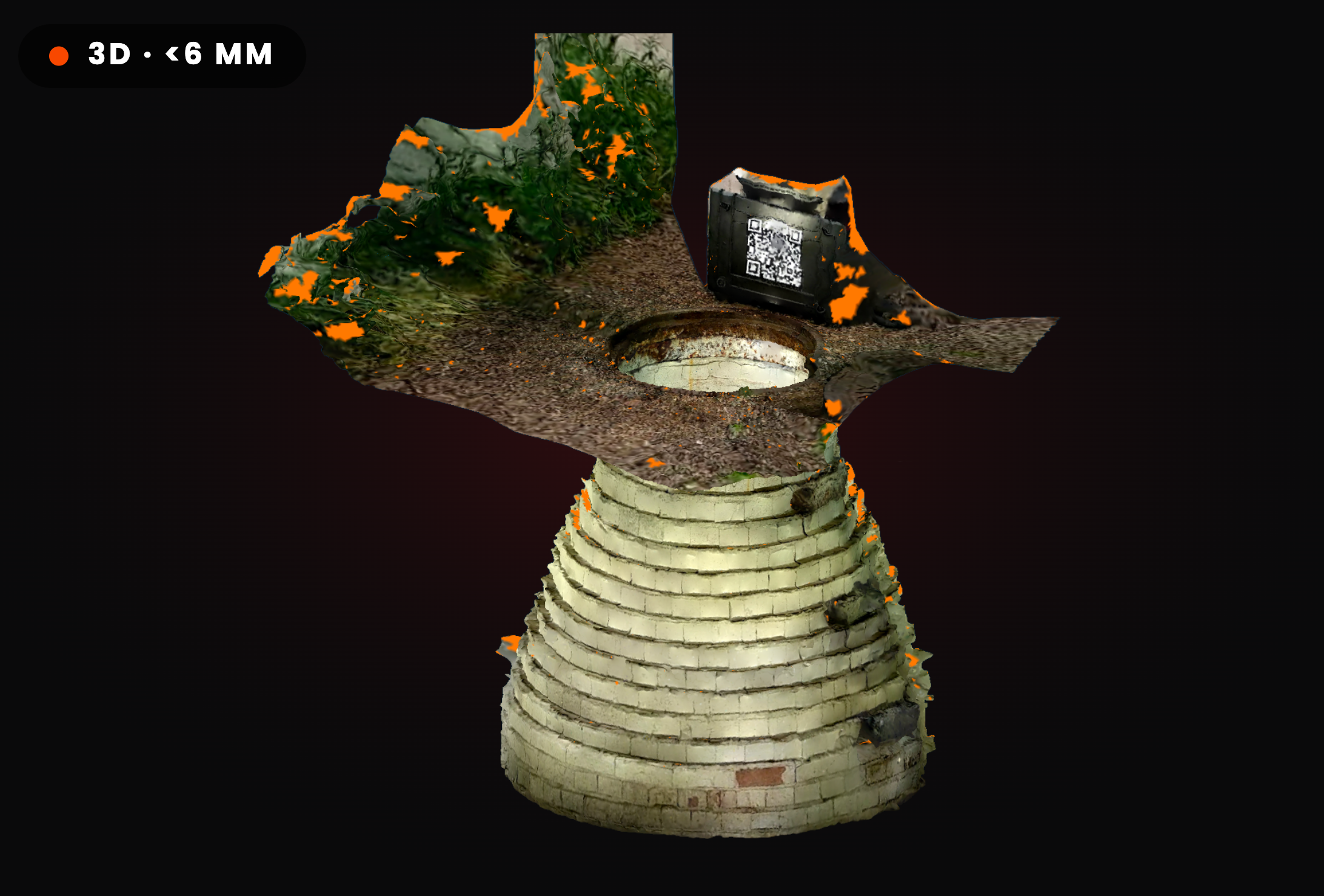

Sub-Quarter-Inch 3D Point
Clouds
Sub-quarter-inch model precision. Measurement-ready for Level 2 MACP, textured, andexportable to open .PLY.
Slimmer Head, Sharper I
mage
A slimmer body centers the optic in the pipe for a cleaner, lower-distortion 360° picture —operators see defects, not blur.
Live & Offline Depth Measurements
Pull depth readings on the live feed in the field — and again from the recorded model back atthe office.
the complete system
One kit, every survey
360° Camera
360° HD 4K · 8.1 MP video
Real-time depth finder
IP68 · tested 6 ft underwater, 1 hr
Integrated rubber impact bumpers
Light Module
6,600 lumens · 6 light modes
Extra spotlight for side pipes
Full-workday battery
50,000-hour LED life
3D Models & Point Clouds
Subcentimeter accuracy
Textured 3D point clouds
Exports to PLY format
No extra hardware required
Extendable Pole
Telescoping reach up to 29.5 ft
Fiberglass · electrically insulated
Anti-rotation oval shape
Extensions available
Tripod
100 ft / 30 m marked strap
Telescopic legs
Corrosion-free aluminum
Lowers safely into manholes
RinnoView + RinnoCloud
Remote live view & management
Ruggedized Windows tablet
Auto Wi-Fi upload of surveys
NASSCO & MACP L2 ready
The platform behind the fleet
A powerful video-streaming, data-transfer and 3D-modeling platform. Surveys uploadautomatically, convert to actionable point clouds, and stay measurement-ready for NASSCO and MACP L2.
NASSCO
macp l2
measurement-ready exports
Automatic File Transfer
Surveys upload the moment a known Wi-Fi network is detected
Push footage and point clouds to any NASSCO or non-NASSCO storage
Operators spend zero minutes shuttling files
3D Models & Measurements
Convert any 360° survey into actionable 3D point clouds — no extra hardware
Capture every measurement needed for Level 2 MACP
Measure side-pipe and mainline diameters from the model
Livestream From Anywhere
360° live video from any unit in your fleet, from any remote location
Supervisors and operators stay in sync without leaving the office
Faster, better decisions on every job
Manage & Geomap Your Fleet
Track every RV-MAX 360s on a live map via internal GPS and cellular SIM
Push configuration updates remotely — no truck rolls
Get actionable utilization and performance metrics
compare the lineup
Which RinnoVision is right for the job
All three capture 360°. The 360S adds measurement-grade 3D and live depth on top of theflagship 360.
you are here
rv-pro 360
entry 360°
you are here
rv-max 360
flagship
you are here
rv-max 360s
higher-end model
speed & cost
Field time / manhole
~1-3 min
~1-3 min
~1-3 min
Office time / manhole
~5-10 min
0 min
0 min
Field time / manhole
1
1
1
imaging & measurement
Video resolution
360° HD 4k • 8 MP
360° HD 4k • 8 MP
360° HD 4k • 8 MP
3D point-cloud precision
No
96-98%
Sub 1/4 in (<6 mm)
Live depth measurements
No
No
Yes
Embedded GPS
No
Yes
Yes
Lighting
3.300 lm • 1 mode
6.600 lm • 6 modes
6.600 lm • 6 modes
field deployment
Deployment
Pole & tripod
Pole & tripod
Pole & tripod
Live view while recording
Limited / app dased
Yes
Yes
Weight
Light
Light
Light
Full coverage
Yes
Yes
Yes
durability
Ruggedness rating
Not specified
IP68
IP68
Drop-tested
No
Yes
Yes
Operating temperature
Not specified
-4°F to +113°F
-4°F to +113°F
Battery live
~60-90 min
Up to 18h
Up to 18h
software & standards
Software platform
No
RinnoView + RinnoCloud
RinnoView + RinnoCloud
Direct MP4-360 video
No
Yes
Yes
Open .PLY 3D models
No
Yes
Yes
AI defect-coding
No
Yes (Pallon)
Yes (Pallon)
Patent protection
Yes
Yes
Yes
Strength / advantage
Partial or variable
Limitation
RV-PRO 360 generalize the GoPro/Insta360 camera class. Figures from the 2026
RinnoVision competitive analysis and RV-MAX360S spec sheet
See the RV-MAX 360S on your jobsite
Book a live demo with a RinnoVision specialist and get the full spec sheet for your fleet.
Industries
caption
Sewer & Water
Inspect manholes, catch basins and other sewer & aqueduct-related confined spaces fast and efficiently to ensure a proper condition assessment program and optimal resource allocation.
infrastructure
Inspect bridges, elevator shafts, storage tanks and various other types of confined spaces in a breeze while maintaining the operators’ safety.
caption
caption
Mining
Inspect mineshafts, crushers and other confined spaces without disturbing the regular operations with the most efficient confined space inspection cameras on the market.
manufacturing industrial
Inspect smokestacks, storage silos, casting molds, furnaces and more in high resolution to flag any potential maintenance issues while keeping your operators safe and sound.
caption
caption
Maritime
Inspect cargo space, double bottoms, cofferdams, boilers and more without having to do any confined space entry procedures, saving precious time and resources.
About Rinnovision
RinnoVision is a Canadian company founded by infrastructure inspection experts who experienced firsthand the limitations of outdated equipment, safety risks, and inefficient inspection processes. Instead of settling for compromises, we completely reimagined inspection technology from the ground up. The RinnoVision cameras embody this philosophy—designed by field professionals, for field professionals.
Trusted worldwide by utilities, contractors, and municipalities, RinnoVision solutions help teams conduct inspections faster, safer, and more efficiently. With cutting-edge innovations such as wireless 360° cameras and AI-powered analysis (in partnership with Pallon), the RV-MAX 360 sets a new standard in manhole and confined space inspection, delivering accurate results and streamlined operations every time.
.png)
We will answer all your questions and send you a quote
Faq
1. What is the RV-MAX 360s camera?
The RV-Max 360s is an innovative inspection solution designed for pipelines, manholes, and other confined spaces. With its 360-degree panoramic view and advanced capabilities, the RV-Max 360s enables quick, accurate, and safe inspections.
2. What are the main benefits of the RV-MAX 360s?
The RV-Max 360s offers:
1. Complete 360° coverage in a single pass.
2. Inspection speeds twice as fast as traditional methods.
3. Exceptional image quality with HD technology.
4. Intuitive and efficient operation at a fraction of the cost of competing solutions.
3. What is the resolution of the RV-MAX 360s camera?
The camera provides Full HD resolution (1920x1080), ensuring clear and detailed visualization of inspected surfaces.
4. Can the RV-MAX 360s camera be used in challenging conditions?
Yes, it is designed to operate in demanding environments. The camera is resistant to water, dust, and extreme temperatures, making it ideal for inspections in various industrial settings.
5. What is the camera's field of view?
The camera offers a panoramic 360-degree view, ensuring total coverage with no blind spots.
6. Is the RV-MAX 360s camera easy to use?
Yes, it has an intuitive user interface. Operators can master its operation after a short training session.
7. What is the weight of the camera?
The RV-Max 360 is lightweight and portable, weighing less than 3 kg, which makes it easy to transport and use in the field.
8. How long does it take to perform a full inspection with the RV-MAX 360s?
Thanks to its advanced technology, you can inspect a manhole in just a few minutes, doubling productivity compared to traditional solutions.
9. What is the battery life of the RV-MAX 360s camera?
The battery offers up to 8 hours of runtime, perfect for a full day of field inspections.
10. Can the RV-MAX 360s camera be used in low-light conditions?
Absolutely. The camera is equipped with powerful integrated LED lighting, enabling effective inspection even in dimly lit environments.
11. Does the camera require specific software for data analysis?
Yes, the camera is compatible with our dedicated analysis software, which allows you to view, record, and generate detailed reports from completed inspections.
12. How do I maintain the RV-MAX 360s camera?
Maintenance is simple: regularly clean the lens with a soft cloth and check connections to ensure optimal performance.
13. Is the camera covered by a warranty?
Yes, the RV-Max 360s comes with a standard 2-year warranty that covers manufacturing defects and malfunctions.
14. Where can I purchase the RV-MAX 360s camera?
You can order the camera directly from our website or contact our sales team for assistance and personalized advice.
15. Do you offer demonstrations of the RV-MAX 360s?
Yes, we provide free demonstrations to showcase all the features of the camera. Contact us for more information.
16. Do you offer after-sales support for the RV-MAX 360s?
Yes, our technical team is available to answer your questions and resolve any issues after purchase.
